CPU

 Intel Core i7-6600U@2.6GHz dual core four threads

VGA Controller

 Intel® HD Graphics 520

Memory

8GB/12GB/16GB/20GB (DDR4-2133)

Storage

Optional：128GB, 256GB, or 512GB

Optional： Disk Wiper

Display

13.3 "1920*1080 1000cd/㎡ IPS/10 point capacitive touch screen/Corning Gorilla Glass

camera

 2M F-camera

Communication

Beidou +GPS,

Bluetooth V4.2,

WLAN 802.11ac/b/g/n (AC3165)   optional：WLAN 802.11ac/b/g/n AC7265

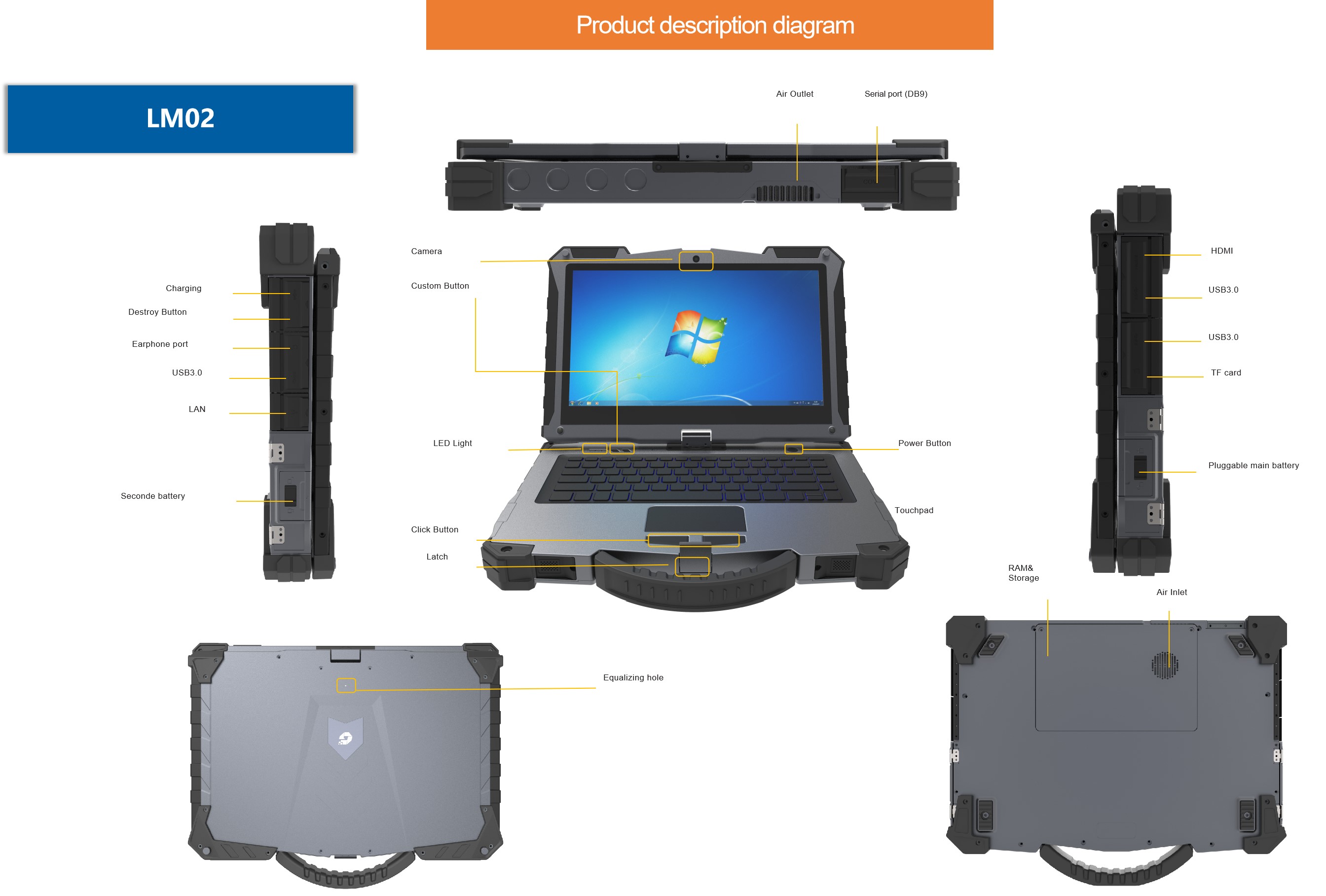

I/O Interface

USB 3.0x3,

HDMIx1,

TF memory card holder x1

Headphone/microphon,Jack x1

RJ45x1

DC power port x1,

serial port x1 (RS232/RS422/RS485)

POGO Pin extensions

Environmental Specification

Temperature:

- Operating: -20ºCto55ºC

- Storage: -40ºCto70ºC

Humidity:- 95% RH, non-condensing

Battery

Main battery capacity：91.2Wh,（pluggable）

Optional:Auxiliary battery capacity：22.8Wh（pluggable）

Adapter

 Input: AC 100~240V AC, 50/60HZ, output: DC 19V, 3.42A

Customizable

 Intel® core™ i7-7600U

500GB/1TB 2.5-inch SATA, hot-swappable

PCIEX4 scalable signal is reserved
